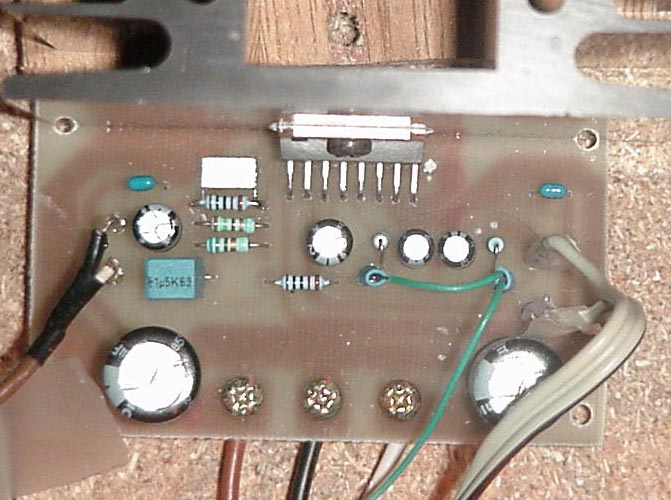

top view

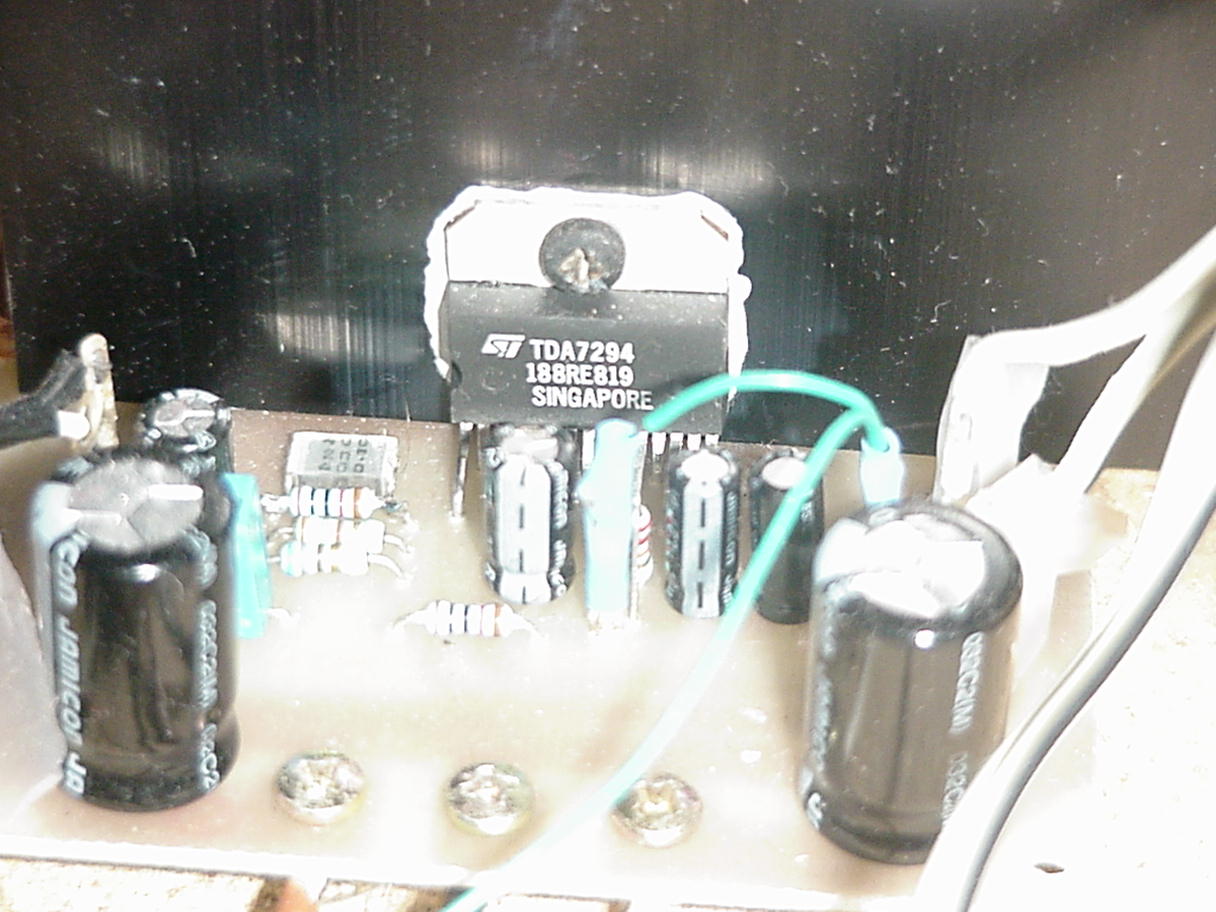

front view
bottom view
example schematic

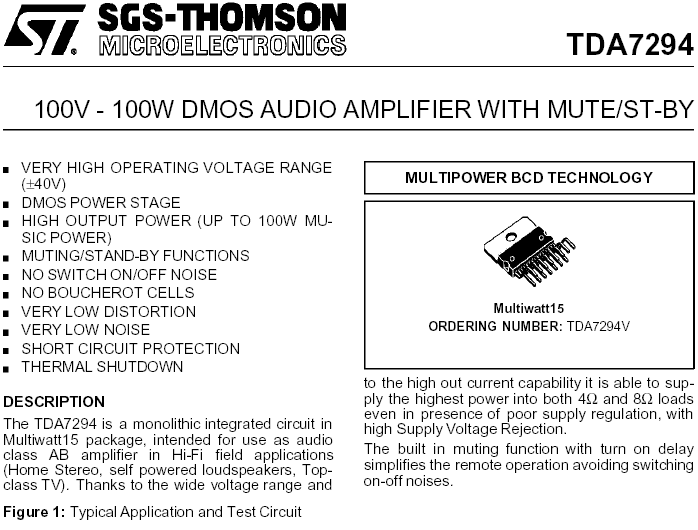

first page of datasheet
the print
Back to the project page: homebuild computer controlled amplifier
home
| input sensitivity | 1.3V |
| input impedance | 10K |
| bandwidth | 16 Hz ..... 100KHz |
| Slew rate | 10V/µs |
| output power (0,1%THD) | 50W at 8 Ohm |
| 82W at 4 Ohm | |
| Signal to noise ratio | 105 dBA |
| THD+N at 40W | 0.002% (1kHz) |
| <0.04% (20....20kHz) |
This is a high quality amplifier, unless you are a real audio freak who makes a fuzz about 0,01% harmonic
distortion.
The TDA7294 is a widely used integrated Audio amplifier circuit made by
SGS-Thomson.
get the datasheet here
