House protection & automation
edsard boelen, 3 march 2012
Last week burglars broke into my house while I was sleeping there and stole my Wii.
So now it's really the time to do some things about home security to make sure it doesn't happen again.
the idea

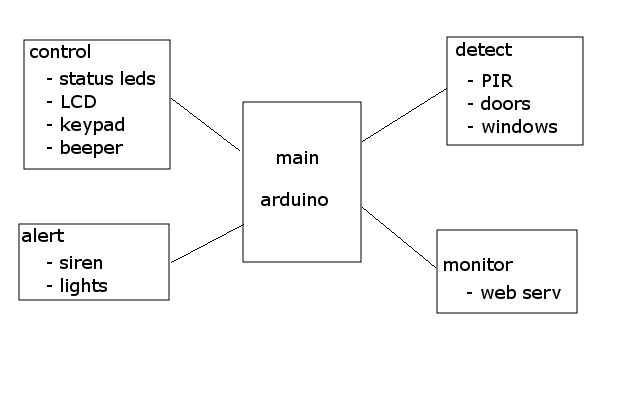

It will actually consist of 4 main parts: detection, ident logic, alarming and web logging to make it fun.
the parts
here is a list of connected items:
- mainboard
- keypad
- sound alarm
- light alarm
- alarm on indicator
- infrared sensors
- door open detectors
- window open detectors
- beeper
- alarm on switch
- web server control
- mobile phone control
the hardware

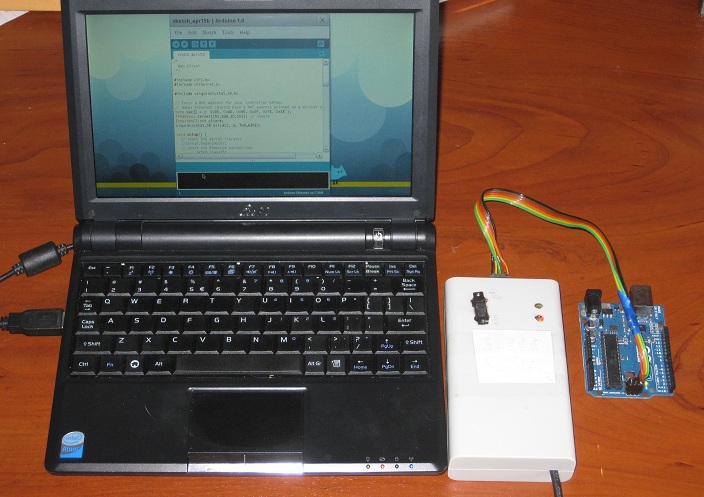

the programmer
The arduino ethernet has no USB connection, so it has to be programmed via rs232 or with a avr prorga
mmer.
the code
alarmsys-1.0.c

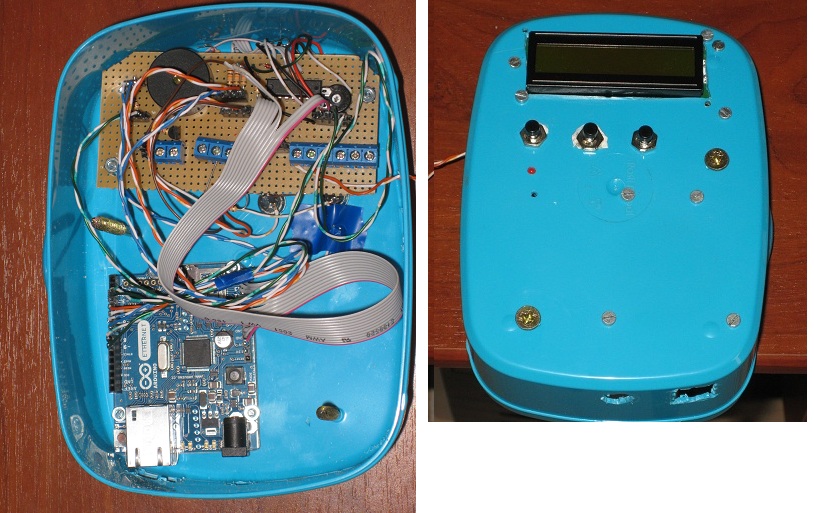

the casing
As you can see, I used a cheap lunchbox for my casing, it is about 20x less expensive than dedicated casings. One drawback, it looks really cheap :).
Below the print is the LCD print.
