avr projects
Getting started with atmel avr microcontrollers
Edsard Boelen, 16 march 2008
Some colleagues of mine are building devices using avr controllers, they gave
a good adress with fast service and low prices. So now I can play with the avr architecture without spending a lot of money.
compiler
There is a good C library available for use with gcc: avr-libc.
avr-gcc -mmcu=atmega32 -Os -L/usr/i586-pc-linux-gnu/avr/lib/ -o avrblink.elf avrblink.c
blink a led
The hello world of embedded systems, to see if the toolchain works.

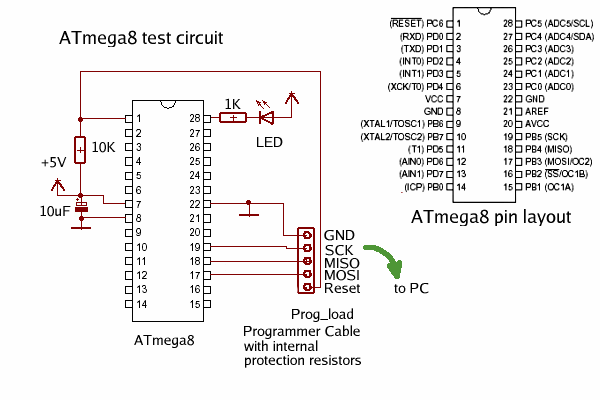

Here is the schematic
The
programmer 1
An atmel avr can be programmed via the parallel port of the computer wihout any extra components.
That is how my first programmer works. Only 2 resistors for safety.
Avrdude designed the bsd programmer.
The pinout is as follows:
| programmer function | paralel port | atmega8 |
| reset | pin 7 | pin 1 |
| sck | pin 8 | pin 19 |
| mosi | pin 9 | pin 17 |
| miso | pin 10 | pin 18 |
| GND | pin 18 | pin 8 |
To test the connections the following command can be used:
avrdude -c bsd -P lpt1 -p m8 -U lfuse:r:con:a
programmer 2
As the lpt port is missing more and more on newer computers, an USB programmer is a far better option.

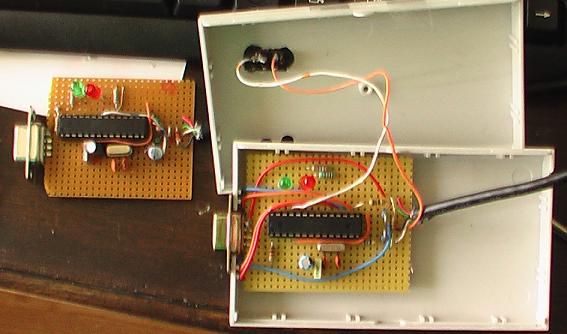

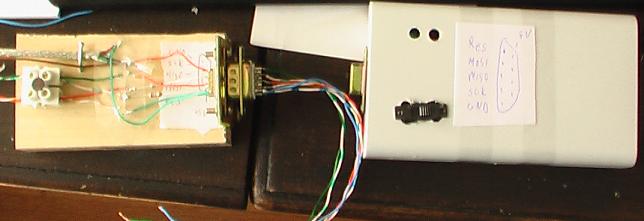

below are the 2 programmers

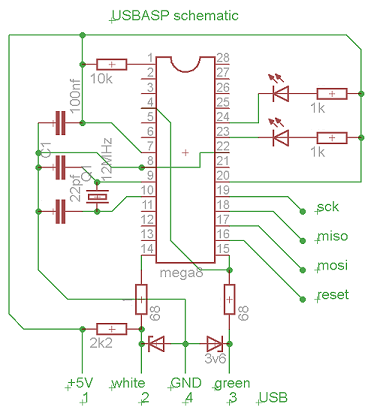

These are the USBAsp prints
usb to rs232
the atmega has a build in usart for rs232 transfers. but just as a parallel port, the rs232 port is often missing and inconvenient. There are good usb->rs232 adaptors available, but they are expensive and require big connectors level shifters etc. So therefore a special chip is needed. why not an avr?
the avr-cdc is just right.
Below is the schematic which I used.
the sources are here
the build command was:
avrdude -v -p m88 -c usbasp -U flash:w:cdcmega88p.hex -U hfuse:w:0xdf:m -U lfuse:w:0xfe:m
the result is:
on connection dmesg showed the following lines:
Device driver usbdev3.3_ep00 lacks bus and class support for being resumed.
usb 3-3: configuration #1 chosen from 1 choice
cdc_acm 3-3:1.0: ttyACM0: USB ACM device
usbcore: registered new interface driver cdc_acm
drivers/usb/class/cdc-acm.c: v0.25:USB Abstract Control Model driver for USB modems and ISDN adapters
testing rs232 communication
project 1, IR receiver

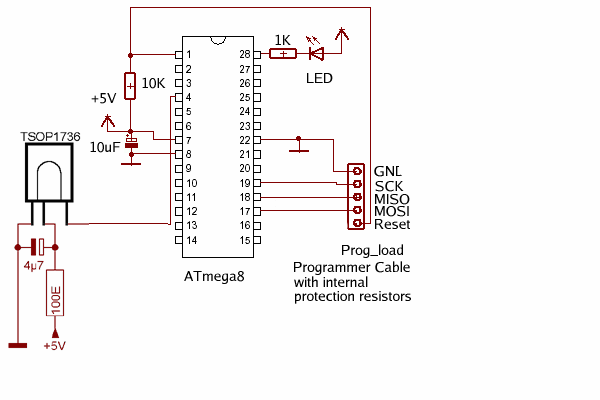

an atmega8 with a tsop1735 receiver will decode a rc5 signal.
